Matching Tractors, ATV or truck
CE Certificate
Air Brake or wide tyre offered as options
Stable Hydraulic System
Flexibility and convenient operation
Quick mounting and dismounting
The 24-hour online servie/sell

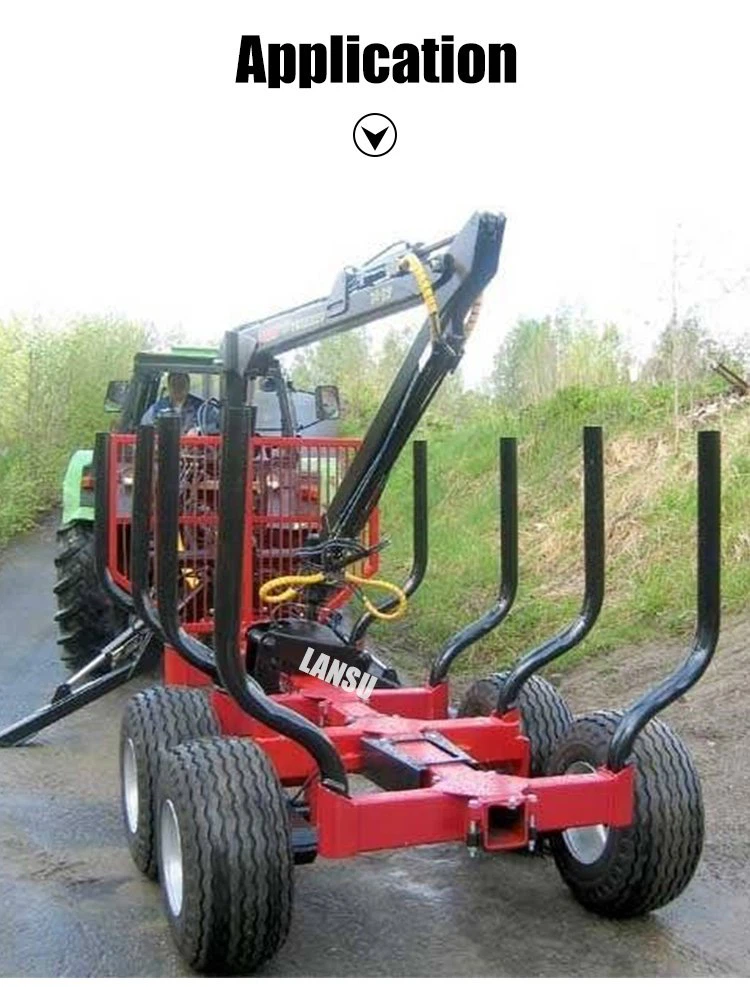

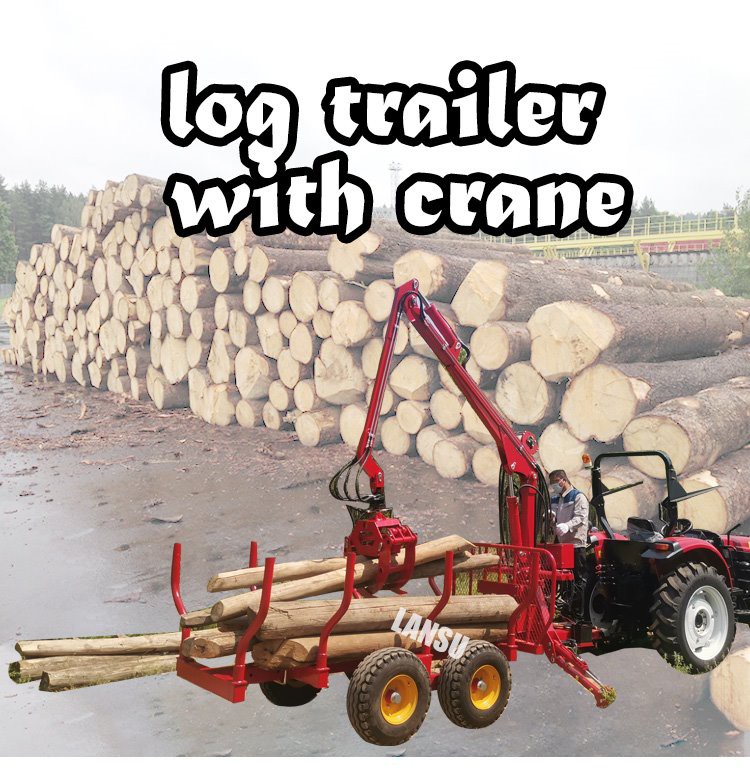

log trailer, wood trailer is used in loading, unloading, transporting, stacking or unstacking of wood, grass and reed, bamboo etc. Hydraulic transmission is used, featured with compact structure, flexibility, convenient operation, quick mounting and dismounting. It used hydraulic oil commonly with tractor. The hydraulic elements are highly standardized, convenient for operation and maintenance.
| Model | ZM1002J | ZM3002 | ZM5004 | ZM8004 | ZM10006 | ZM12006 | ZM15006 |
| Mactching Power(hp) | 10-20 | 10-25 | 20-50 | 30-60 | 50-80 | 70-100 | 80-140 |
| Machine weight(kg) | 850 | 1010 | 1790 | 2040 | 2750 | 3000 | 3200 |
| Rated Loading Capacity(T) | 1 | 3 | 5 | 8 | 10 | 12 | 15 |
| Total length of trailer | 3.8-4.40 | 3.6 | 5.1 | 5.1 | 5.9 | 6.3 | 6.3 |
| Total width of trailer | 1.35 | 1.4 | 1.6 | 1.8 | 2.2 | 2.3 | 2.5 |
| Max.Arm reach(m) | 3.7 | 3.5 | 4.3 | 6 | |||
| Lifting capacity/arm reach (kg/m) | 300/1.5 200/3.5 | 400/2 200/3.5 | |||||
| Rotating angle (degree) | 200 | 370 | |||||
| Max.grab opening width (mm) | 700 | 1140 | |||||
| Power (Option):PTO/Gasoline engine/Diesel engine | |||||||
