Hand Push Sprayer

1. Suitable for disease and insect pest prevention of field crops, gardens and fruit trees, and livestock and poultry epidemic prevention and disinfection. 2. Clean various vehicles, machinery and equipment, clean walls and floors, etc. 3. Dredge channels and pipelines: deliver water 3km on flat ground and 1km on a 45-degree slope. 4. This machine is not suitable for using insoluble powdery pesticides, otherwise it will easily cause machine blockage and accelerate machine wear.

Send Inquiry

Item	Parameter
Engine Type	Gasoline. Air-cooled Single Cylinder,4-stroke. OHV
Engine Model	168F /170F
Gasoline Engine Power	6.5hp/7.5hp
Flow rate:minimum 38L/min, pressure	30-40 bars
Tank capacity	100L-300L Pipes:50m
Spray Range (Mist State)	8-10m
Spray Range (Liquid State)	10-12m
Dimensions	1090X600X830mm

hand-push-sprayer01 Han

Gasoline sprayer features:
1. High power, low fuel consumption, strong pressure, uniform atomization, high/long range;
2. It can be used by multiple people at the same time, saving medication, strong adhesion, and reducing costs;
3. Simple operation, convenient use and maintenance.
4. Equipped with a hose reel, the working range is larger and the efficiency is higher.
5. It can carry out atomized pesticide application, direct current cleaning and water jet spraying, which is especially suitable for field operations.

6 products adopt engines with strong power, low fuel consumption, good durability, excellent quality and low cost, and cast steel gearboxes.

This product is equipped with a jet mixing system in the medicine box to forcefully stir the medicine liquid. Therefore, the concentration of liquid medicine in the medicine box is uniform from beginning to end.

The elastic return mechanism and guard rod at the end of the spray arm can effectively protect the nozzle from damage.

This product has an automatic water adding function that can fill the medicine box in 3 minutes, which greatly reduces auxiliary work time and improves work efficiency.

This product has large flow rate, stable pressure, uniform atomization of spray parts, and reliable anti-drip.

The nozzle is made of aluminum alloy and the medicine box is made of polyethylene, which is strong and resistant to corrosion by various pesticides.

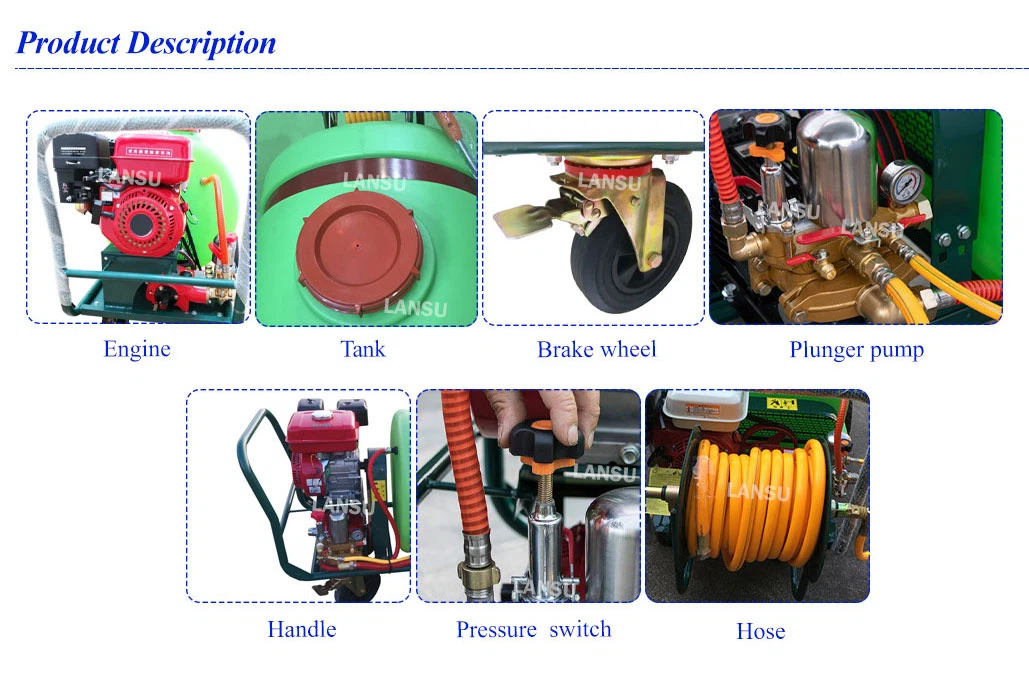

hand-push-sprayer02
