The 3 ton truck New agricultural Trailer 2 axles is suitable for all types of tractors. The single axle is fixed with the tractor through the safety pin.Pneumatic braking.
产品型号：7C－2T
Model: 7C－2T
产品名称：农用拖车
Name: farm trailer

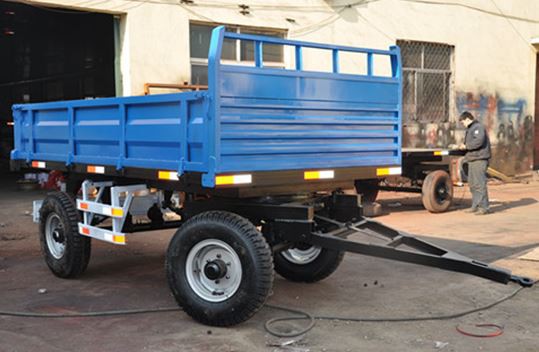

产品图片：
Picture:
2吨拖车主要配套于12－25马力拖拉机，刹车形式可选用撞刹、机械刹或气刹，卸料形式可选装自卸。减震形式：弹性弓板。牵引形式：三角架活牵引。表面处理：大型抛丸机消除焊接应力、除锈、除氧化皮、防锈漆、面漆处理。焊接工艺：CO2工装焊接。
2 ton trailer mainly match with 12-25hp tractor .
The brake form can chosen mechanical , impact or air brake, the unload form can choose hydraulic tipping .
The form of damping: leaf spring The form of traction: tripod traction
Surface treatment: derusting with large shot blast machine, to change welding stress
Surface spray coating: antirusting paint, finishing paint , stoving varnish.
The process of welding: carbon dioxide jig welding.
The form of transportation: parts and components, flexible packing with the box plate
主要参数：Main parameter:
Loading space (mm) 车厢尺寸 | Out dimensions (mm) 外形尺寸 | Loading capacity (kg) 载重 | Self Weight (kg) 自重 | Tyre 配套轮胎 | Unload form 卸料形式 | Brake 刹车 形式 |
2100*1500*460 | 3150*1550*1880 | 2000 | 390 | 7.00－16 | Manual 人工 | Select 选装 |
450 | Tipping 自卸 | |||||
2400*1200*460 | 3500*1500*1880 | 2000 | 360 | 7.00－16 | Manual 人工 | Select 选装 |
430 | Tipping自卸 |
40尺高柜可装2吨拖车50台 The Qty of 40’HQ : 2T trailer 50 pcs
