Product description

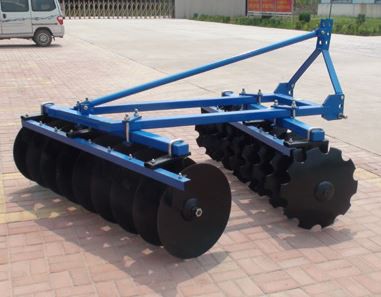

Light-duty Disc Harrow

This series are used for crushing clods after tillage, preparing soil before seeding , loosening the soil , combining the soil and fertilizer ,
and cleaning away stubble of plants in light soil field . With reasonable structure, strong ability to rake , durable , easy to use and maintain , etc.
| type | 1BQX-1.1 | 1BQX-1.3 | 1BQX-1.5 | 1BQX-1.7 | 1BQX-2.0 | 1BQX-2.2 | 1BQX-2.3 | |||
| Working width(mm) | 1100 | 1300 | 1500 | 1700 | 2000 | 2200 | 2300 | |||
| Working depth (mm) | 100-140 | |||||||||
| No. of disc (pc) | 12 | 14 | 16 | 18 | 20 | 22 | 24 | |||
| Dia. Of disc (mm) | 460 | |||||||||
| Weight(kg) | 200 | 220 | 250 | 270 | 380 | 400 | 420 | |||
| Linkage | Three point mounted | |||||||||
| Matched power (hp) | 12--18 | 15-18 | 20-25 | 25-30 | 35-40 | 40-45 | 55 | |||
| type | 1BQ-3.4 | 1BQ-5.0 | ||||
| Working width(mm) | 3400 | 5000 | ||||
| Working depth (mm) | 100-140 | |||||
| No. of disc (pc) | 42 | 60 | ||||
| Dia. Of disc (mm) | 460 | 460 | ||||
| Weight(kg) | 1150 | 1550 | ||||
| Linkage | trailed | |||||
| Matched power (hp) | 80-100 | 100 | ||||

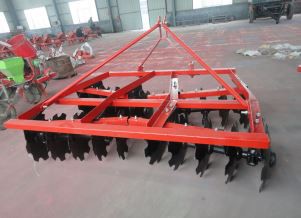

Opposed Light-duty Disc Harrow

Disc harrow is mainly applicable for breaking up the clods of farmland,light soil after furrow,loosening soil and mixing soil and fertilizer before sewing.It has the features of reasonable structure,strong ability to rake,durable,eassy to use and maintain,strong craghing-earth ability and ground flat after working,etc.
| Opposed Light-duty Disc Harrow | |||||||||||||
| type | 1BQDX-1.25 | 1BQDX-1.6 | 1BQDX-2.0 | 1BQDX-2.3 | 1BQDX-2.65 | 1BQDX-3.0 | |||||||
| Working width(mm) | 1250 | 1600 | 2000 | 2300 | 2650 | 3000 | |||||||
| Working depth (mm) | 50-150 | ||||||||||||
| No. of disc (pc) | 16 | 20 | 24 | 28 | 32 | 36 | |||||||
| Dia. Of disc (mm) | 460 | ||||||||||||
| Weight(kg) | 330 | 390 | 460 | 560 | 600 | 650 | |||||||
| Linkage | Three point mounted | ||||||||||||
| Matched power (hp) | 35-40 | 40-45 | 50-60 | 60-75 | 75-85 | 85-100 | |||||||

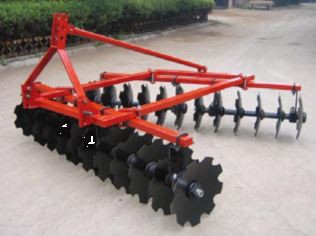

Mounted Medium Disc Harrow

1BJX series mounted medium disc harrow:This series are used for crushing clods after tillage,preparing soil before seeding , loosening the soil ,
combining the soil and fertilizer , and cleaningaway stubble of plants in light soil field . With reasonable structure, strong ability to rake , durable,easy to use and maintain, etc.
| type | 1BJX-1.1 | 1BJX-1.3 | 1BJX-1.5 | 1BJX-1.7 | 1BJX-2.0 | 1BJX-2.2 | 1BJX-2.4 | 1BJX-2.5 | 1BJX-2.8 | 1BJX-3.0 | 1BJX-3.4 | ||
| Working width(mm) | 1100 | 1300 | 1500 | 1700 | 2000 | 2200 | 2400 | 2500 | 2800 | 3000 | 3400 | ||
| Working depth (mm) | 140 | 140 | 140 | ||||||||||
| No. of disc (pc) | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 32 | ||
| Dia. Of disc (mm) | 560 | 560 | |||||||||||
| Weight(kg) | 320 | 340 | 360 | 420 | 440 | 463 | 604 | 660 | 700 | 1300 | 1400 | ||
| Linkage | Type II Three point mounted | trailed | |||||||||||
| Matched power (hp) | 25-30 | 30-40 | 40 | 45 | 50-55 | 55-60 | 65-70 | 75 | 80 | 80 | 100 | ||
