The company continues to promote product innovation and upgrades, and is committed to becoming the world's best Agricultural Machinery Mini Power Tiller, Two Wheel Garden Tractor, 15hp Farm Tractor manufacturer. We believe that innovation, in the final analysis, means constant self-denial and self-transcendence, to constantly have new goals. The after-sales service department thinks about what customers think, is anxious about what customers are anxious, and solves problems for customers in the first time, so that customers can use our products at ease and comfort.

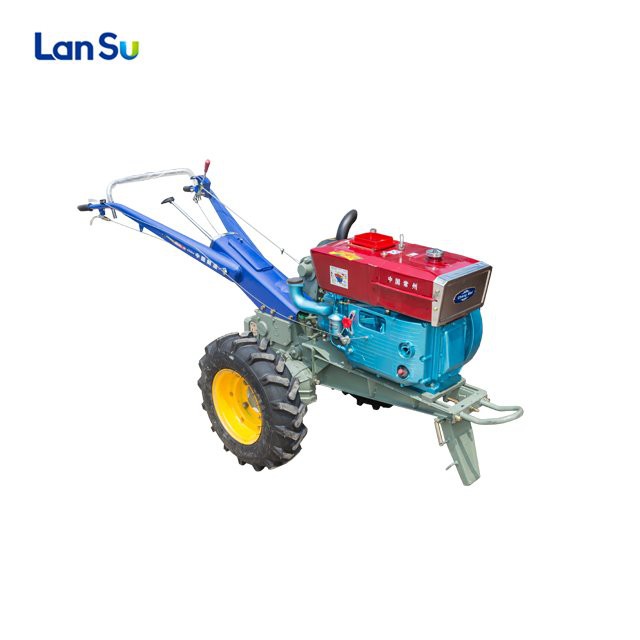

| Model | LSW-18HP |
| Engine Type | Single cylinder, horizontal, 4 stroke, Direct injection |
| Gear Shift | 6F+2R |
| Bore*Stroke(mm) | 105*115 |
| Total Displacement(L) | 0.996 |
| Rated Output(kw) | 12.1 |
| Max.Output(kw/rpm) | 13.31 |
| Rated Speed(r/min) | 2200 |
| Cooling System Consumption | Evaporative/Condensing |
| Lubrication Method | Pressure splash spray |
| Starting Method | Hand start/Electric start |
| Tyre | 600-12 |
| Engine Net weight(kg) | 160 |
| Chassis Type | Traction&Driving |
| Rated Traction | 2400N |
| Min Ground Distance | 185mm |
| Type of clutch | Double friction disc of constant conjunction |
| Tread | 580-800mm |
| Chassis Structure Weight | 160kg |
The horizontal single cylinder diesel engine is mostly used in the two wheel walk behind tracker. The power of the engine is transmitted from the V-belt to the transmission system, and the speed of the power is controlled by the clutch. The power is transmitted through the chain.
The central drive, final drive, steering mechanism and brake are all installed in the transmission. The gearbox adopts gear transmission, and the transmission gears vary randomly, generally 6 + 2 gears (i.e. 6 forward gears and 2 backward gears), at least 3 + 1 gears, and at most 12 + 6 gears. The power after the speed change is transmitted to the driving wheels on both sides by the central transmission and the final transmission. The steering mechanism adopts jaw clutch or copper ball clutch.
In order to improve the working conditions of the driver, the walking tractor made in China is equipped with 1-2 supporting wheels and seats to become a riding tractor;
two wheel walk behind tractor. Cultivator walking tractor is also known as wheeled walking tractor, which is characterized by no driving wheel, but a rotary cultivator is installed on the driving shaft, which not only cultivates the soil, but also can walk forward.
Walking tractor is generally composed of frame, power unit, transmission system, walking device, steering system, brake and control mechanism.
The two wheel walk behind tracker can be divided into drive type, traction type and dual-purpose type according to operation performance. The driving type is mainly equipped with rotary cultivator, so it is also called power cultivator;
15HP walk behind tractor, traction type, mainly supporting traction type farm tools; The dual-purpose type can be used for rotary tiller operation (see Figure), tractor operation or trailer transportation.
Two wheel walk behind tracker can be divided into wheel type, crawler type and plough type according to the walking device. Wheeled walking tractor can be divided into single wheel and double wheel according to the number of walking wheels.
Our current high value-added Good Quality Farm Walk-Behind Tractor Two Wheels Hand Walking Behind Tractors is increasing, and we have certain competitive advantages in the market. We have always been based on the common vision of the industry and guided the future of the industry based on the lofty concept of achieving outstanding value for our customers. Our company has capital, team, innovation, technology, as well as good industry resources, focusing on the industry, we can highlight our professional characteristics, so we can retain customers for a long time.
