Model | LSW-15HP |
Engine Type | Single cylinder, horizontal, 4 stroke, Direct injection |
Gear Shift | 6F+2R |
Bore*Stroke(mm) | 100*115 |
Total Displacement(L) | 0.903 |
Rated Output(kw) | 11.03 |
Max.Output(kw/rpm) | 12.13 |
Rated Speed(r/min) | 2200 |
Cooling System Consumption | Evaporative/Condensing |
Lubrication Method | Pressure splash spray |
Starting Method | Hand start/Electric start |
Tyre | 600-12 |
Engine Net weight(kg) | 155 |
Chassis Type | Traction&Driving |
Rated Traction | 2400N |
Min Ground Distance | 185mm |
Type of clutch | Double friction disc of constant conjunction |
Tread | 580-800mm |
Chassis Structure Weight | 160kg |

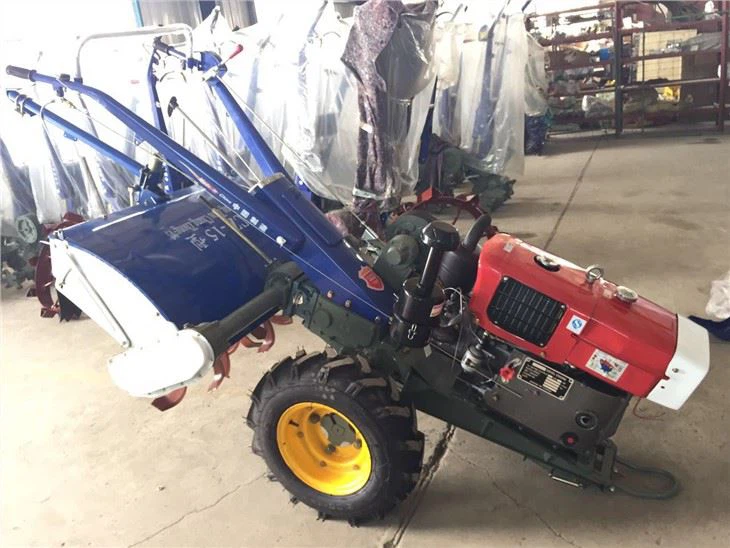

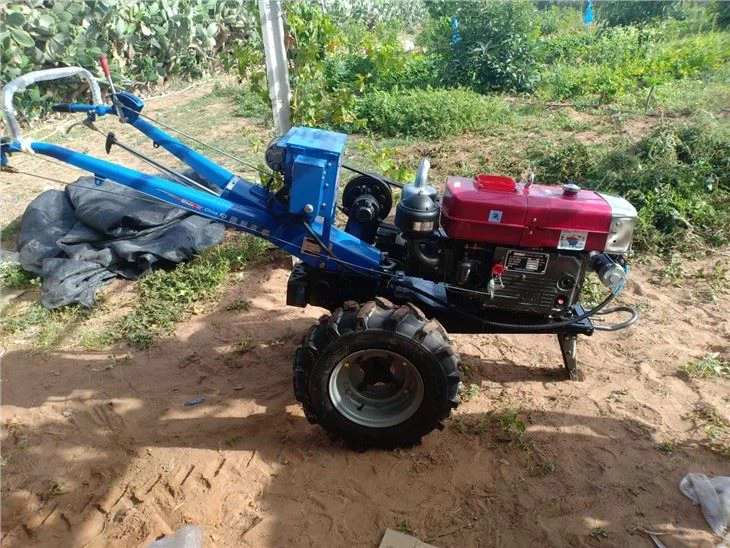

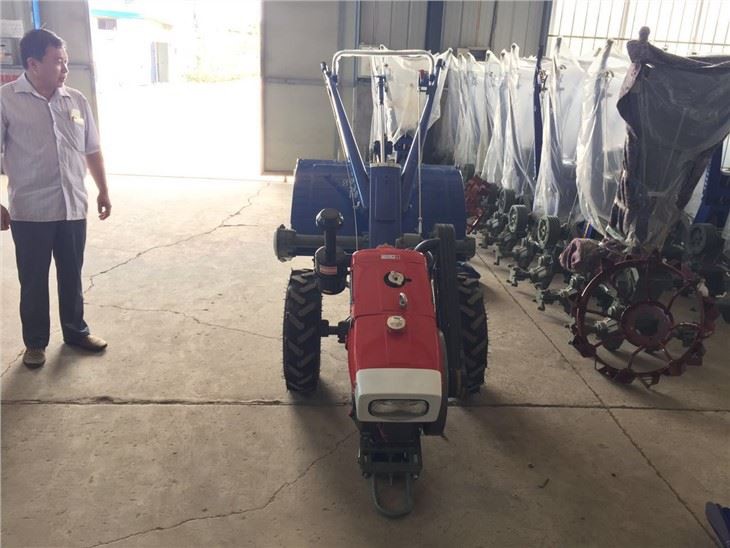

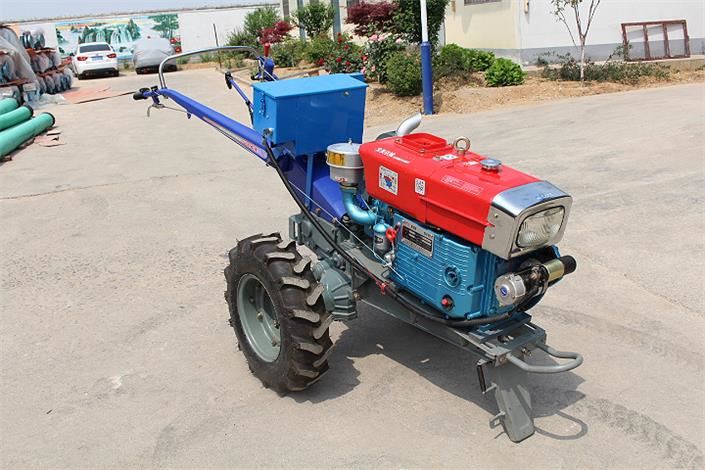

8-20hp hand walking tracker can be divided into driving type, traction type and dual-purpose driving and traction type according to operation performance. The driving type is mainly equipped with rotary cultivator, so it is also called power cultivator.

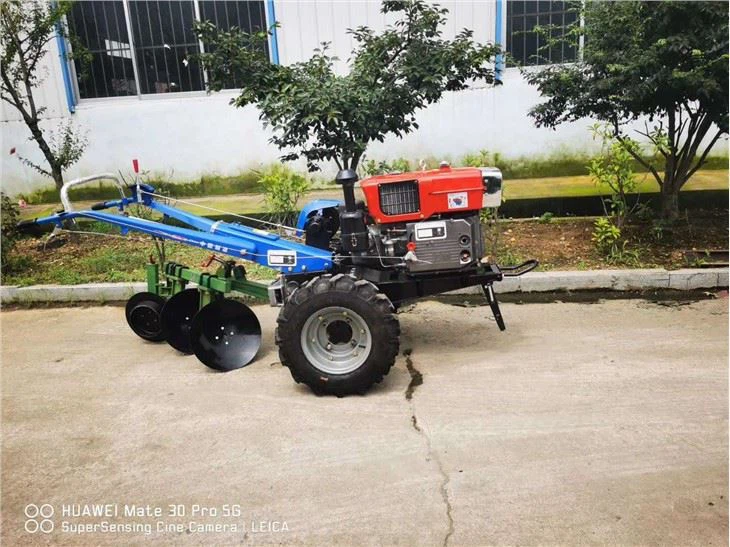

8-20hp hand walking tractor is mainly used for supporting traction farm tools; The dual-purpose type can be used for rotary tiller operation (see Figure), tractor operation or trailer transportation.
