Intelligent electronic control
The intelligent control system realizes high match between power system and hydraulic system to improve the working efficiency and reduce the fuel consumption.
The man-machine friendly new generation intelligent electronic control system enables you to master all working status of your machine.
Firm and durable structural parts
The upper frame adopts the modal analysis technology to realize high firmness and durability while effectively reducing the vibration and noise of machine.
The design of structural parts is comprehensive optimized and the critical load-carrying locations are reinforced to resist against severe working conditions.
The base plates, side plates, and reinforcement plates of bucket are made of high-strength wear-resistant material to improve the durability of bucket.

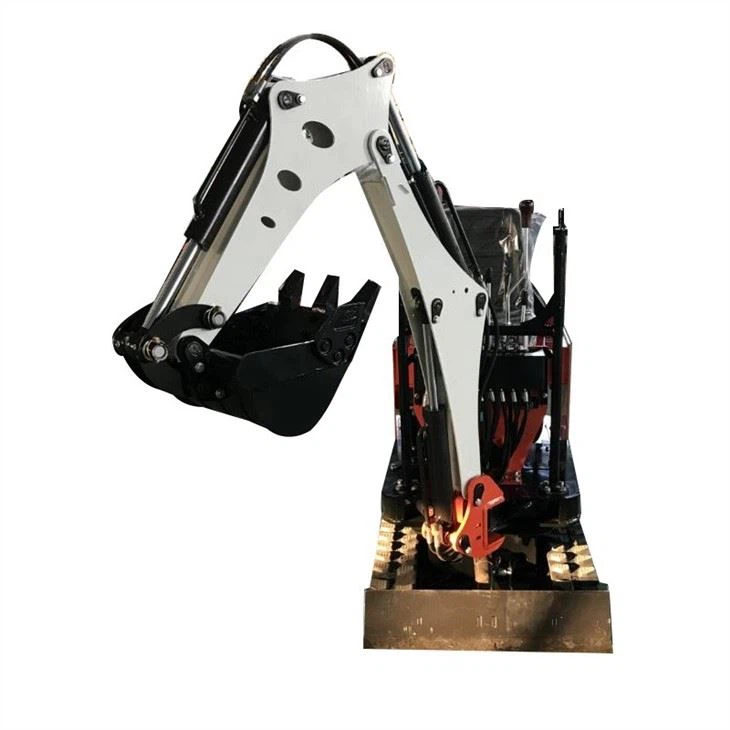

08 Red Dragonfly Excavator（side swing）
| Rated power(KW) | 8.6 |
| Bucket capacity(m³) | 0.025 |
| Engine model(Popular Science/Changchai 192) | |
| Working weight(kg) | 636 |
| Maximum digging force(kn) | 7.5 |
| Pump type | Unitary gear pump |
| Set working pressure | 14 |
| Swing speed(Rpm) | 12 |
| Walking speed(Km/h) | 2.2 |
| Gradeability(°) | 30 |
| Big arm side swing | Left 50 Right 40 |
| Ground pressure(Kpa) | 19 |
| Working range | |
| Maximum digging distance(mm) | 2450 |
| Maximum excavation depth(mm) | 1300 |
| Maximum excavation height(mm) | 2350 |
| Maximum unloading height(mm) | 1600 |
| Minimum radius of gyration(mm) | 1100 |
| Bulldozer Maximum Ground Clearance(mm) | 120 |
| Dozer blade maximum support depth | 200 |
| Dimensions | |
| Minimum ground clearance(mm) | 80 |
| Track ground length(mm) | 1140 |
| Track width(mm) | 150 |
