The mini excavator is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse,diggingtrench. It is with small engine, simple design, easy to maintain
Main Features:
Highly reliable traveling device
With 30 years of R&D and manufacturing experiences of drive sprockets, idlers, track rollers, carrier rollers, and tracks and with industry's high-end technologies, it's the first choice for excavators.
The mature and high-quality forging and heat treatment processes guarantee stable and reliable quality.
The track rollers of same specification with 7T class are installed to realize high firmness and durability and long life.

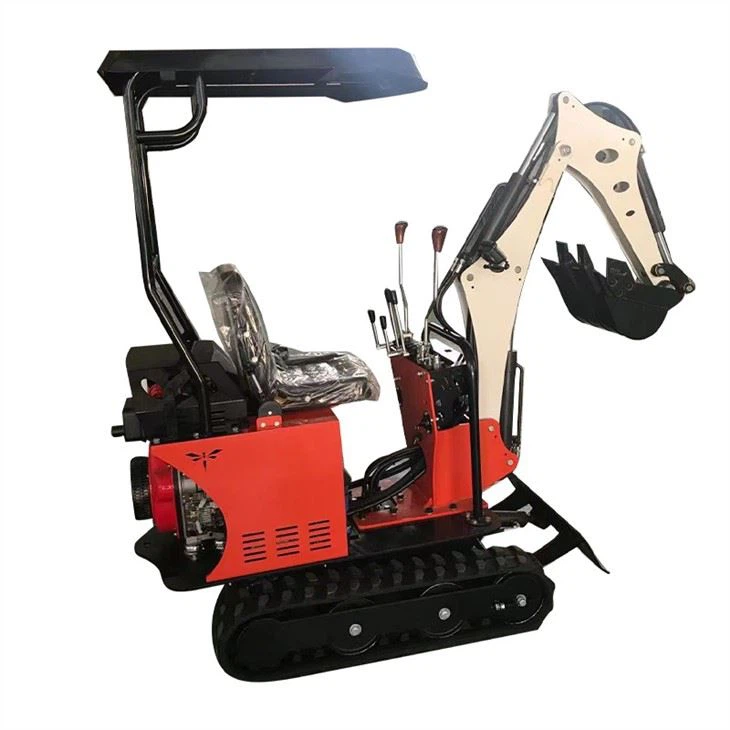

08 Red Dragonfly Excavator
| Rated power(KW) | 8.6 |
| Bucket capacity(m³) | 0.025 |
| Engine model(Popular Science/Changchai 192) | |
| Working weight(kg) | 636 |
| Maximum digging force(kn) | 7.5 |
| Pump type | Unitary gear pump |
| Set working pressure | 14 |
| Swing speed(Rpm) | 12 |
| Walking speed(Km/h) | 2.2 |
| Gradeability(°) | 30 |
| Ground pressure(Kpa) | 19 |
| Working range | |
| Maximum digging distance(mm) | 2450 |
| Maximum excavation depth(mm) | 1300 |
| Maximum excavation height(mm) | 2350 |
| Maximum unloading height(mm) | 1600 |
| Minimum radius of gyration(mm) | 1100 |
| Bulldozer Maximum Ground Clearance(mm) | 120 |
| Dozer blade maximum support depth | 200 |
| Dimensions | |
| Minimum ground clearance(mm) | 80 |
| Track ground length(mm) | 1140 |
| Track width(mm) | 150 |
