MODEL | 304 |
Horsepower&Drive Type | 30hp, 4×4 |
ENGINE | |
Engine model | 30hp |
No. of Cylinder | 2 |
Bore/Stroke(mm) | 100*105 |
Type | Vertical, Water-Cooled, Four Strokes, Direct in Injection |
Rated Speed(rpm) | 2300 |
Rated Output(kW) | 22.06 |
DIMENSION | |
Size L*W*H (mm) | 3350*1500*1860 |
Wheel Base (mm) | 1650 |
Wheel Tread (mm) F/R | 1000/1100(adjustable) |
Min Ground Clearance(mm) | 280 |
Structure Weight(KG) | 1200 |
TRANSMISSION | |
Type | Sliding |
No. of Gear | 8F + 2R |
Clutch Type | Dry, Single-stage |
Differential | Differential Lock |
RUNNING SYSTEM | |
Tyre F/R | 6.00-16/9.50-24 |
Steering | Hydraulic Steering |
Brake | Dry, Toe Type |
Speed Range | 2.00 to 30 km/h |
WORKING SYSTEM | |

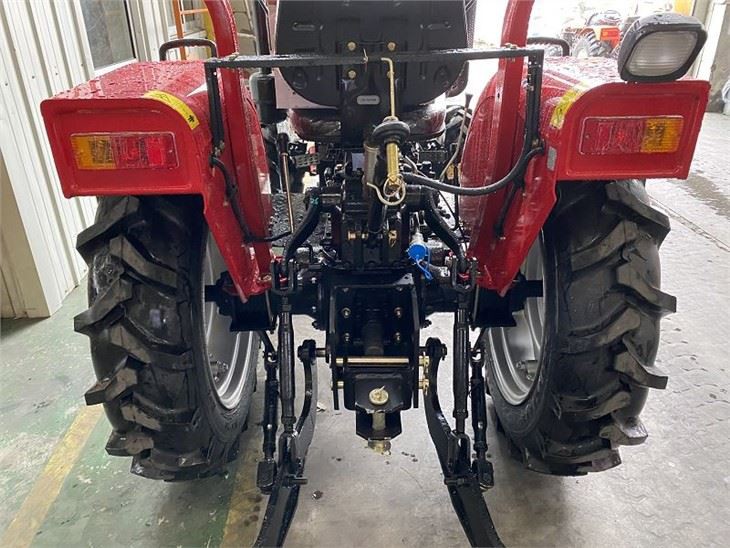

Hitch | Partial Separated Type, 3-Point hydraulic hitch |
PTO | Rear Rectangle Spline, 6 Teeth, 540/1000rpm |
Yantai Lansu Electrical Equipment Co., Ltd. has continuously improved, perfected and developed 30 HP 4WD tracker series products for more than 30 years, which are economical and practical, and are deeply loved by the majority of users.
The 30 HP 4WD tractor is characterized by compact structure, reliable performance, proper power matching, good matching, low fuel consumption and convenient maintenance. Its sales markets are all over the world.
30 HP 4WD tractor, with matching power from 17 HP to 45 HP.
30 HP 4WD tracer, including forced circulation type, evaporation type, condensation type and steam circulation double cooling type. There are dozens of models, such as ordinary type, reinforced type, electric starting type, transportation type, etc. It can meet the requirements of field operation, fixed operation and transportation operation under various conditions in different areas.
Hot Tags: 30 hp 4WD tractor, China, suppliers, manufacturers, factory, customized, wholesale, quotation, made in China, 35HP 4WD 354 Agriculture Tractor, 804 New Agriculture 4WD Farm Tractor, 60 Hp 4 4 Small Farm Tractors, Agriculture Equipment 554 Farm Tractor, 4 Wheel Drive Farm Tractors, Mini Tractor
