| Tractors Main Techical Specifications | ||||
| Model | /70hp | |||
| Type | 4WD Wheeled Type | |||
| Dimensions of Tractor(mm) | L*W*H | 3550*1600*2250 | ||
| Tread | Front Wheel | 1215 Fixed or 1150~1215 Adjusted | ||
| Rear Wheel | 1300 Fixed or 1300~1350 Adjusted | |||
| Axle Base | 1710 | |||
| Min.Ground Clearance | 347.5 | |||
| Structure weight (kg) | 1130 | |||
| Ballast weight | Front ballast | 56 | ||
| (kg) | Rear ballast | 112 | ||
| Rated traction force (kg) | 551 | |||
| Engine | Model | 70hp | ||
| Manufacturer | LD engine or Changchai engine or Others | |||
| Type | Vertical, 3-Cylinder, Water Cooled and 4-stroke | |||
| Rated speed (r/min) | 2400 | |||
| Fuel | Diesel | |||
| Tyre | Front Wheel | 6.50-16 | ||
| Rear Wheel | 11.2-24-24 | |||
| Clutch | Dual-stage clutch | |||
| Steering | power steering | |||
| Transmission Type | 8+2 gearshift | |||
| Suspension Type | 3-point links | |||
| PTO | Type and Rev | Semi-independent Type 540/1000 | ||
| Spline Size | F35 Rectangle Spline with 6 teeth | |||
| Structure and specification are subject to change without notice. | ||||

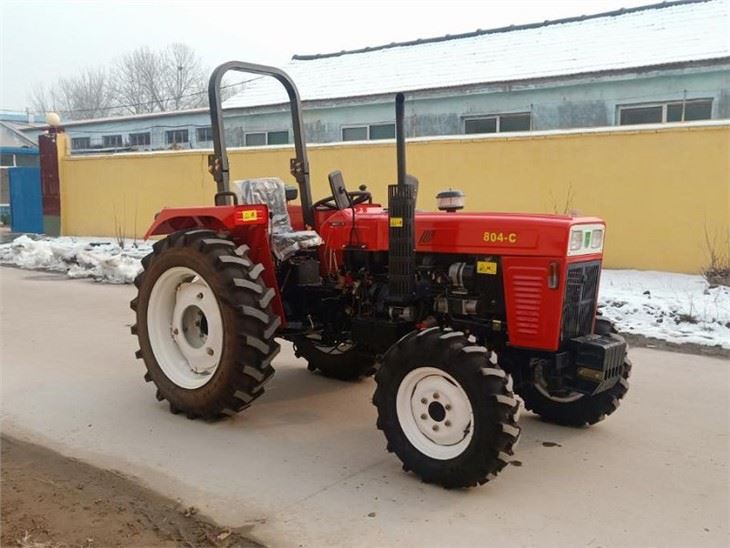

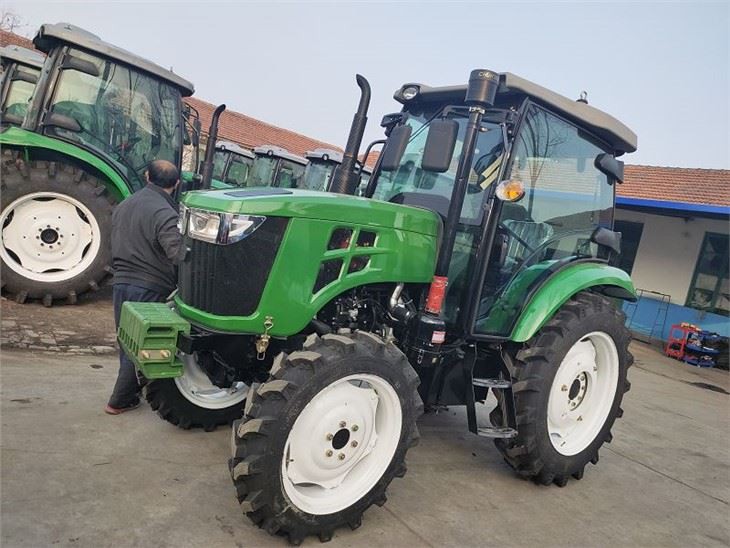

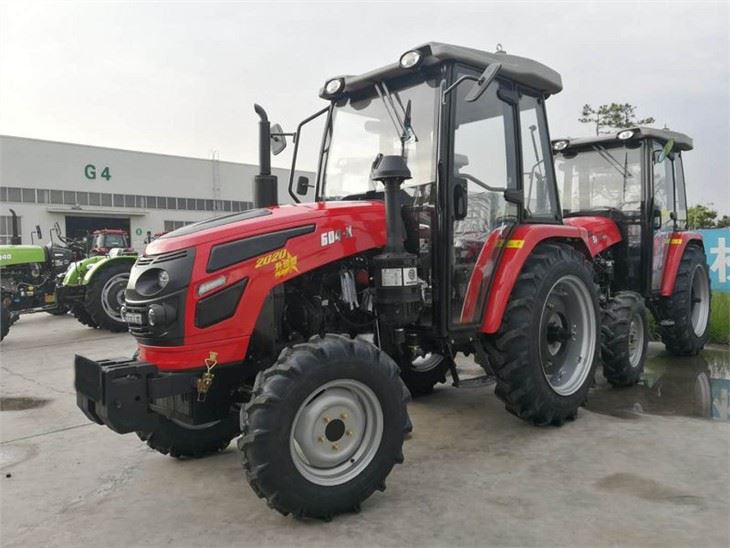

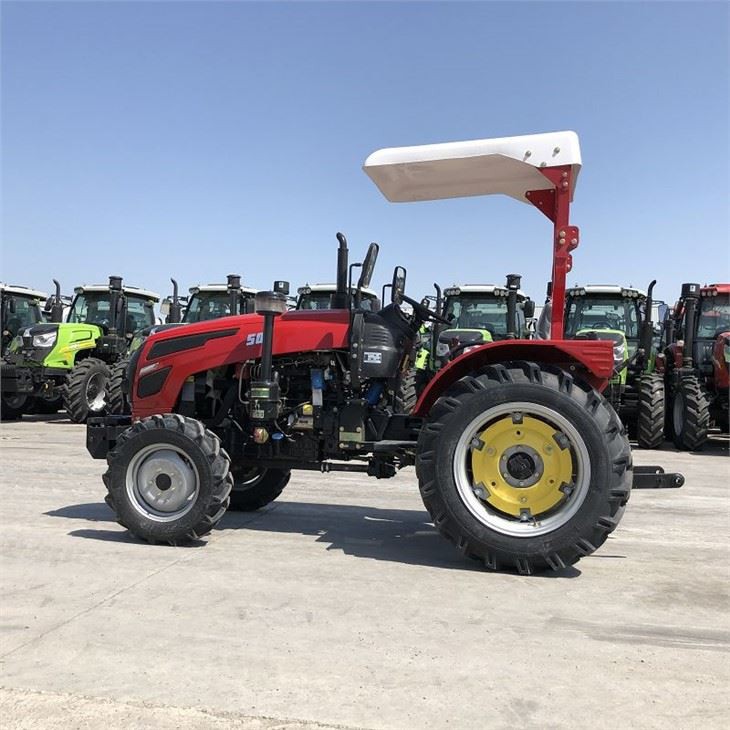

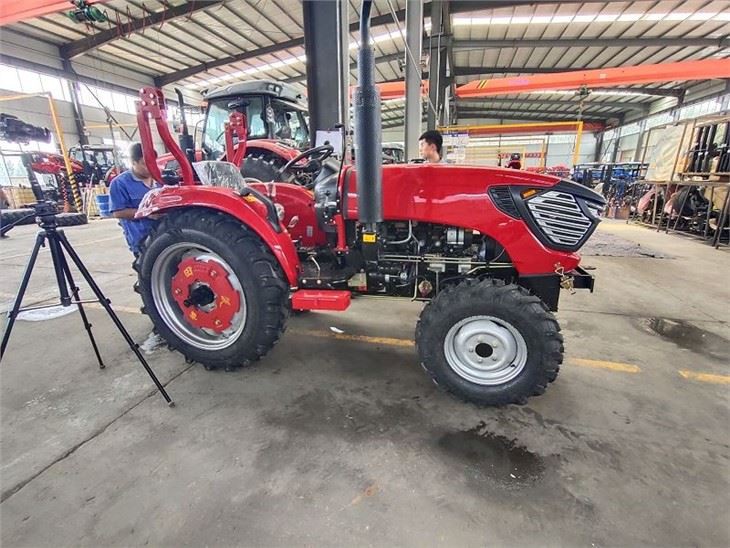

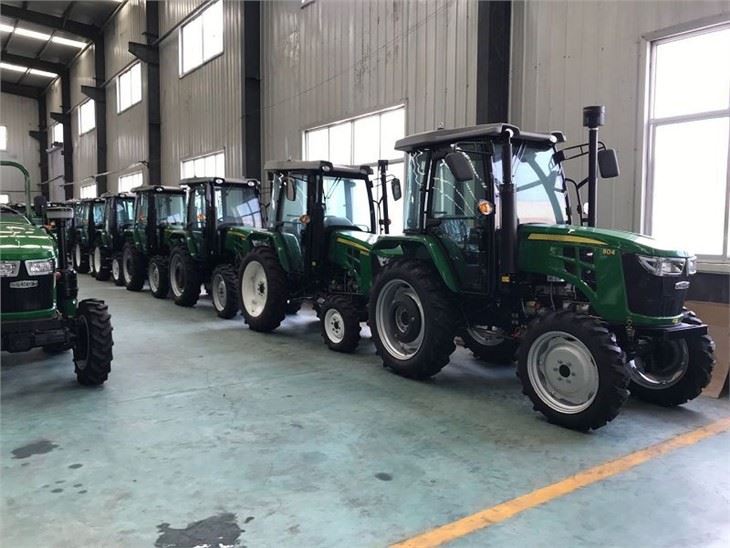

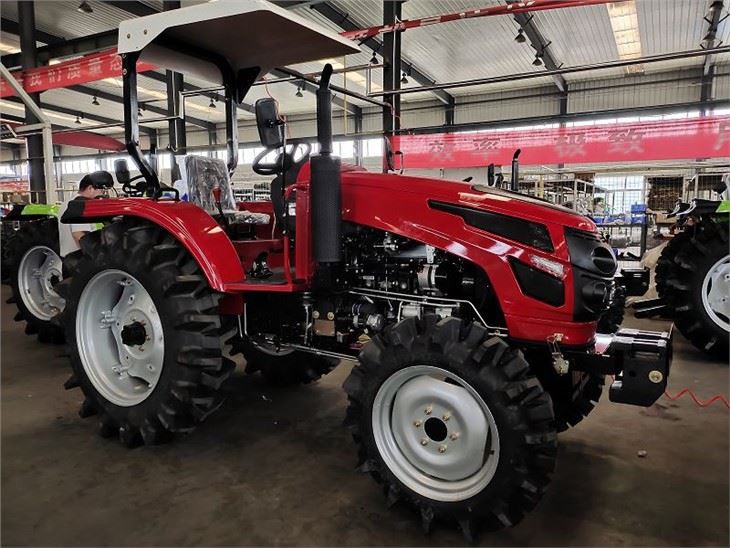

804 new agriculture 4WD farm tracker, matching with engines made in China, has strong power, large torque reserve and can meet the needs of different users;
Power emission upgrade, performance upgrade, low fuel consumption, high reliability, more advanced technology.
804 new agriculture 4WD farm tracker adopts 16F + 8R synchronizer shuttle shift gearbox with full helical gear transmission, which makes the operation more flexible and light;
804 new agriculture 4WD farm tracker is equipped with imported German original Luk clutch, which is more flexible and reliable.
